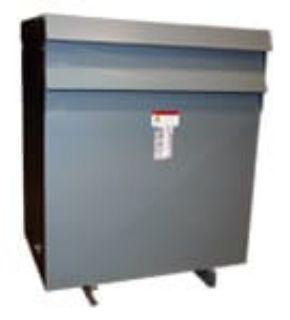

DE440KDC HMD

HPS Tribune™, energy efficient drive isolation transformers, are designed to meet the rugged demands of both AC and DC variable speed drives and also provide the required voltage change. The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load. The windings are designed to withstand over current of 150% of the rated load for 60 s or 200% of the rated load for 30 s.

HPS Tribune™ Drive Isolation Transformer, Energy Efficient Heavy Duty Ventilated, 480 Delta VAC Primary, 240Y VAC Secondary, 440 kVA, 60 Hz, 3 ph Phase, Lug/Pad, Floor Mount, 220 deg C, NEMA 3R, 30 to 40 deg C, 38 in L x 48-1/2 in W x 59 in H
