F9N0505RTPF031 PAN

Name: F9N0505RTPF031 PAN
Brand: Panduit
SKU: F9N0505RTPF031 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

F9N0505RTPF031

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

OS1/OS2 Singlemode Round Standard

Description

RoHS compliant MTP™/MPO interconnect round cable assemblies shall include one factory-terminated female MTP*/MPO 12-fiber connector on each end of laser optimized OM3 and OM4 fiber or OM1, OM2 or OS1/OS2 fiber. Jacketed cable is compliant with NFPA 262 (OFNP) flame rating. MTP*/MPO interconnect round cable assemblies shall meet or exceed the requirements of TIA/EIA-568-C.3. The MTP*/MPO 12-fiber connector shall exceed the requirements of TIA/EIA-455-21A for 500 mating cycles. The MTP*/ MPO™ connector finishing process shall deliver uniform fiber height, low insertion loss and excellent return loss performance across the 12-fiber interface.

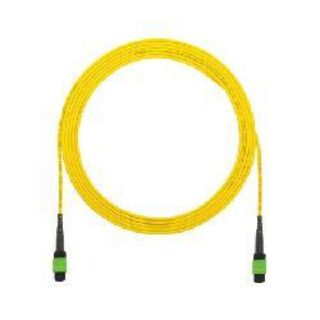

Panduit® QuickNet™ Interconnect Cable Assembly, OS1/OS2 Singlemode Round Standard, 12 Fibers, 31 ft Length, Female MTP/MPO Connector, OFNP Jacket, Yellow Jacket, Yellow

Application

High Density Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, Equipment Distribution Areas, Ethernet, Fast Ethernet, FDDI and ATM Applications

Standards

Features

High density 12-fiber round cable
Proprietary polishing process
Variety of fiber cable configurations
Certified 10 GbE performance
Test data supplied with each cable assembly
Factory terminated and 100% tested for insertion loss
Insertion loss and return loss data recorded for every singlemode cable assembly
Lifetime traceability of test data to a Q.C. number on each cable assembly

Specifications

Color:	Yellow
Connector Type:	Female MTP/MPO
Country of Origin:	CR
Fiber Count:	12
Jacket Color:	Yellow
Jacket Material:	OFNP
Length:	31 ft
