FS11000 ACM

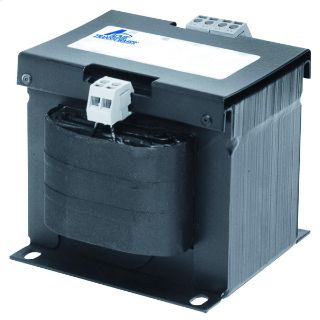

Picture of FS11000 ACM
Actual Product May Vary From Image

Product Details

Manufacturer:
Acme Electric
Manufacturer part number:
FS11000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Acme Electric®

Type

Industrial

Description

The Acme FINGER/GUARD® line of touch protected industrial control transformers offers the most advanced and versatile design concepts available to the marketplace today. They are designed to meet Acme rigid standards for mechanical durability as well as surpass Agency and industry electrical standards. The FINGER/GUARD® line is designed for all control applications and features integrally installed, durable molded plastic terminations designed to protect against contact with live components. No slip-on plastic covers to be broken, lost or misplaced. All FINGER/GUARD® products use copper windings, high permeability silicon steel cores and 130 deg C (Class B) insulation.
Acme Electric® Control Transformer, Industrial, 120/240 VAC Primary, 24 VAC Secondary, 1000 VA Power, 50/60 Hz Frequency, 1 ph, Screw Connection, Panel Mounting, Class B/130 deg C Insulation, Open Enclosure, 80 deg C, Silicon Steel Housing Material, 6.03 in H x 6.75 in W x 4.76 in D Dimensions

Application

For motor starters, contactors, solenoids and timers or other loads applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 506 | E79947 | CSA C22.2 File No. 66 | CE Certified

Features

  • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
  • Designs incorporate precision wound coils for improved regulation
  • Copper windings on all groups
  • Voltage regulation exceeds NEMA requirements
  • Attractive finish, nameplate, and design features enhance the end product
  • Small and lightweight design
  • Durable molded plastic terminals
  • Easy access front opening in terminal makes for fast wire connections with one screw
  • Open core and coil

Specifications

Connection Type:Screw
Country of Origin:MX
Dimensions:6.03 in H x 6.75 in W x 4.76 in D
Enclosure Type:Open
Frequency Rating:50/60 Hz
Housing Material:Silicon Steel
Insulation:Class B/130 deg C
Mounting Type:Panel
Phase:1
Power Rating:1000 VA
Primary Voltage:120/240 VAC
Secondary Voltage:24 VAC
Temperature Rating:80 deg C
