P365 MAR

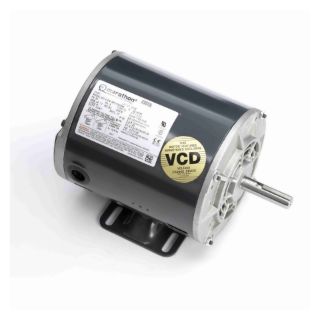

Picture of P365 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
444UTFS17077
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® AC Motor, 6-Pole Continuous-Duty, Automotive Motors Application, 60 hp, 460 VAC, 71 A, 60 Hz Frequency, 3 ph ph, 1190 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 444U Frame, 2.88 in Dia x 8.63 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 332 ft-lb Torque, Rigid Base Mounting, 65 deg C, Insulation Class: Class F, Cast Iron, 41.38 in L x 33.03 in W x 26.7 in H Dimensions

Standards

CE | CSA Certified | UL Listed

Features

Squirrel cage induction run

Specifications

Amperage Rating:71 A
Application Type:Automotive Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:41.38 in L x 33.03 in W x 26.7 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:444U
Frequency Rating:60 Hz
Horsepower:60 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1
Shaft Size:2.88 in Dia x 8.63 in L
Speed:1190 rpm
Temperature Rating:65 deg C
Torque Rating:332 ft-lb
Voltage Rating:460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
60 HP
Speed Rating
1190
Type
Squirrel Cage Induction Run
Voltage Rating
460V
