00050 3 TKN

Name: 00050 3 TKN
Brand: Timken
SKU: 00050 3 TKN
Availability: OutOfStock

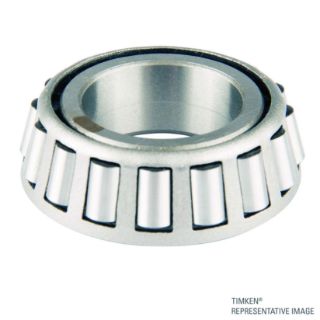

Tapered Roller Bearing Single Cone Precision

Manufacturer: Timken

Manufacturer part number: 00050-30000

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Single Cone Precision | Imperial | 12.7 mm 0.5 in Bore | 14 mm 0.6 in Width

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Timken® outer (cup) and inner (cone) rings should be used in combination

Specifications

Assembly Components:	Single Cone
Bearing Material:	Steel
Bearing Type:	Single Cone
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Inner Ring
Dynamic Load Rating:	4690
Inner Race Width (in):	0.554
Inner Race Width (mm):	14.0716
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Overall Width (in):	0.55
Overall Width (mm):	13.97
Precision class:	Class 3 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	0.5
Shaft Size (mm):	12.7
Static Load Rating:	3840
