00212XT3E184T WEG

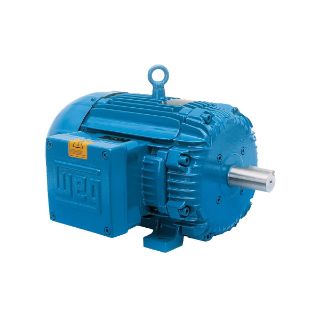

WEG 00212XT3E184T Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 184T Frame, 1165 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 00212XT3E184T
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,158.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101373781
Motion Industries - 04866667

Description

W21Xd is an explosion proof motor especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/zone 1. All ratings meet NEMA Premium® efficiency. Motors are certified for VFD service.
WEG AC Motor, Continuous-Duty, Explosion Proof AC Motors Special Features, 2 hp, 208/230/460 VAC, 6.92 to 6.26/3.13 A, 60 Hz Frequency, 3 ph ph, 1165 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 8.89 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 15.862 in L Dimensions

Standards

CSA LR50962 | NEMA Premium® | UL E87848

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:6.92 to 6.26/3.13 A
Bearing Type:Ball
Constant Torque Speed Range:20:1
Dimensions:15.862 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:184T
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Shaft Size:1-1/8 in Dia x 2-3/4 in L
Speed:1165 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:8.89 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
