Actual Product May Vary From Image

003003 DOD

Name: 003003 DOD
Brand: Dodge
SKU: 003003 DOD
Price: 227.76 USD
Availability: OutOfStock

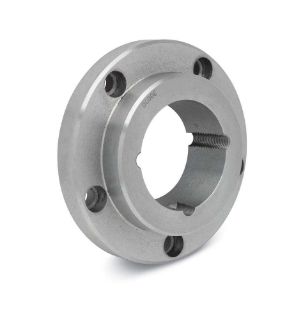

R25TL RIGID MALE FLANGE ASSY

Manufacturer: Dodge

Manufacturer part number: 003003

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$227.76

Qty:

Product Details

ATEX Certificate:	No
Bore Diameter (Maximum):	2.6875
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	0.5000
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	1.7500
Bore Length (Unit):	INCH
Bushing Size:	2517
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	R25
Coupling Style:	Rigid
Coupling Type:	Metallic
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	29.2000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	3545
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	285.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-100.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Number of Bolts:	5
Rated Torque:	18400.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
Tightening Torque:	900
Tightening Torque (Unit):	INCH_POUND
