Actual Product May Vary From Image

003005 DOD

Name: 003005 DOD
Brand: Dodge
SKU: 003005 DOD
Price: 501.73 USD
Availability: OutOfStock

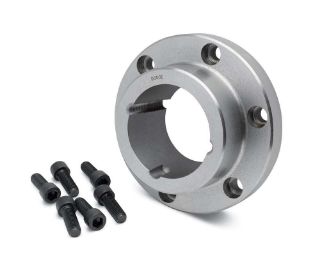

R30TL RIGID MALE FLANGE ASSY

Manufacturer: Dodge

Manufacturer part number: 003005

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$501.73

Qty:

Product Details

ATEX Certificate:	No
Bore Diameter (Maximum):	3.2500
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	0.9375
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	3.0000
Bore Length (Unit):	INCH
Bushing Size:	3030
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	R30
Coupling Style:	Rigid
Coupling Type:	Metallic
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	50.5000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	2920
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	285.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-100.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Number of Bolts:	6
Rated Torque:	31800.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
Tightening Torque:	2000
Tightening Torque (Unit):	INCH_POUND
