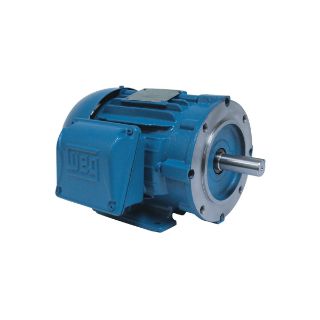

Actual Product May Vary From Image

00309ET3E215TC-W22 WEG

Name: 00309ET3E215TC-W22 WEG
Brand: WEG
SKU: 00309ET3E215TC-W22 WEG
Price: 2,166.00 USD
Availability: OutOfStock

WEG 00309ET3E215TC-W22 Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 213-5TC Frame, 870 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 00309ET3E215TC-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,166.00

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101377406
Motion Industries - 04701687

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 3 hp, 208/230/460 VAC, 10.1 to 9.1/4.55 A, 60 Hz Frequency, 3 ph ph, 870 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213-5TC Frame, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 17.9 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 19.517 in L Dimensions

Application

General Purpose Applications

Standards

NEMA MG-1

Features

Regreasable bearings
Gasketed conduit box
All cast iron construction, including terminal box and fan cover
IP55 rating
Corrosion proof drains

Specifications

Amperage Rating:	10.1 to 9.1/4.55 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	20:1
Dimensions:	19.517 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	213-5TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1.25
Speed:	870 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	17.9 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	208/230/460 VAC
