00336ET3EJPR56C-S WEG

Name: 00336ET3EJPR56C-S WEG
Brand: WEG
SKU: 00336ET3EJPR56C-S WEG
Price: 602.00 USD
Availability: OutOfStock

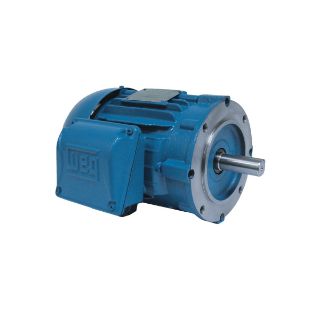

WEG 00336ET3EJPR56C-S AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/460 VAC, 3 ph Phase, 56C Frame, 3600 rpm Speed, C-Face Footless Mount

Manufacturer: WEG

Manufacturer part number: 00336ET3EJPR56C-S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$602.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112706127
Motion Industries - 06976171

Description

These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.

WEG AC Motor, Jet Pump (JM/JP) Motors Application, 3 hp, 230/460 VAC, 3.5 A, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1.15 Service Factor, 4.44 ft-lb Torque, C-Face Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 15.083 in L Dimensions

Application

Jet Pump Applications

Features

NEMA service factor
Automatic reset thermal overload protection
Stainless steel shaft end

Specifications

Amperage Rating:	3.5 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	15.083 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footless
Phase:	3 ph
Service Factor:	1.15
Speed:	3600 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	4.44 ft-lb
Voltage Rating:	230/460 VAC
