00336ET3ESS182TC WEG

Name: 00336ET3ESS182TC WEG
Brand: WEG
SKU: 00336ET3ESS182TC WEG
Price: 1,989.00 USD
Availability: OutOfStock

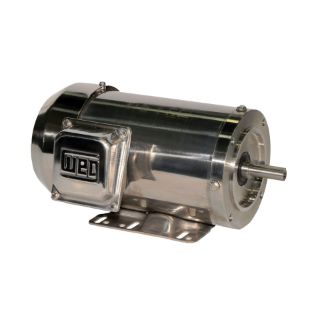

WEG Shark™ 00336ET3ESS182TC AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 182TC Frame, 3600 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 00336ET3ESS182TC

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,989.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101379110
Motion Industries - 04864457

Description

WEG Shark™ AC Motor, General Purpose AC Motors Application, Washdown Duty Motors Special Features, 3 hp, 230/460 VAC, 3.73 A, 60 Hz Frequency, 3 ph ph, 3600 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 182TC Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Stainless Steel, 17.3 in L Dimensions

Application

Food Processing, Pharmaceutical and Other Applications

Standards

NEMA PremiumÂ®

Features

Washdown Duty Motors

Specifications

Amperage Rating:	3.73 A
Application Type:	General Purpose AC Motors
Dimensions:	17.3 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182TC
Frequency Rating:	60 Hz
Horsepower:	3 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	3600 rpm
Voltage Rating:	230/460 VAC
