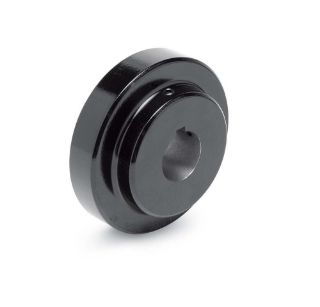

Picture of 004598 DOD

Actual Product May Vary From Image

004598 DOD

9S X 1-5/8 FLANGE

Manufacturer: Dodge

Manufacturer part number: 004598

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$102.86

Qty:

Product Details

Specifications

Angular Misalignment:	1.0000
Angular Misalignment (Unit):	DEGREE
Axial Misalignment:	0.1920
Axial Misalignment (Unit):	INCH
Bore Diameter (Actual):	1.6250
Bore Diameter (Actual) (Unit):	INCH
Bore Fit:	Clearance
Bore Length:	2.4100
Bore Length (Unit):	INCH
Bore Tolerance Standard:	AGMA 9002
Coupling Component:	Flange
Coupling Size:	9
Coupling Style:	Sleeve
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	11.4000
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	3750
Maximum Speed (Unit):	RPM
Parallel Misalignment:	0.0250
Parallel Misalignment (Unit):	INCH
Rated Torque:	7200.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bored To Size
Shaft Spacing:	Close Coupled

Resources

Tech Bulletin Installation
