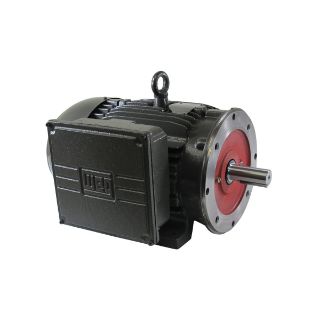

Picture of 00518ES1C184TC WEG
Actual Product May Vary From Image

00518ES1C184TC WEG

WEG 00518ES1C184TC Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208/230 VAC, 60 Hz, 1 ph Phase, 184TC Frame, 1800 rpm Speed, C-Face Footed Mount
Manufacturer: WEG
Manufacturer part number: 00518ES1C184TC
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 102218350
Motion Industries - 02612544

Description

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.
WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 208/230 VAC, 21.4 A, 60 Hz Frequency, 1 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, 1.15 Service Factor, Ball Bearing, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 17.05 in L Dimensions

Application

General Purpose Applications

Features

  • V-ring seals
  • NPT threaded terminal box

Specifications

Amperage Rating:21.4 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Dimensions:17.05 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:184TC
Frequency Rating:60 Hz
Horsepower:5 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:C-Face Footed
Phase:1 ph
Service Factor:1.15
Shaft Size:1-1/8 in Dia x 2-3/4 in L
Speed:1800 rpm
Temperature Rating:40 deg C
Voltage Rating:208/230 VAC
