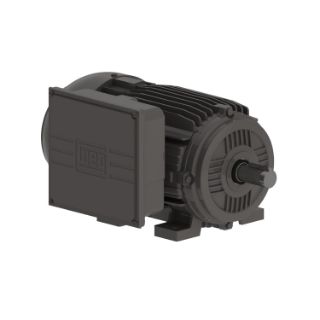

00518ES1E184T WEG

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 208/230/460 VAC, 22.5 to 21.4/10.7 A, 60 Hz Frequency, 1 ph ph, 1730 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 15.0 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 17.05 in L Dimensions
