00518ET3E184T-W22 WEG

Name: 00518ET3E184T-W22 WEG
Brand: WEG
SKU: 00518ET3E184T-W22 WEG
Price: 772.00 USD
Availability: InStock

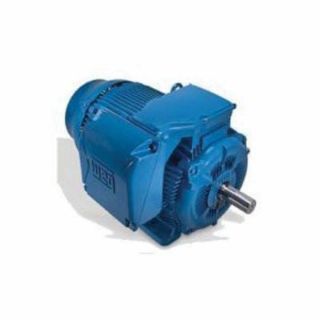

WEG 00518ET3E184T-W22 AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 182/4T Frame, 1755 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00518ET3E184T-W22

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$772.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101371128
Motion Industries - 04516801

Description

WEG AC Motor, General Purpose AC Motors Application, 4-Pole, Direct On Line Starting Method Special Features, 5 hp, 208/230/460 VAC, 14.3 to 12.9/6.45 A, 60 Hz Frequency, 3 ph, 1755 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182/4T Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 14.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron

Application

For water pumping applications

Standards

CE | CSA Certified | UL Listed

Features

4-Pole, Direct On Line Starting Method

Specifications

Amperage Rating:	14.3 to 12.9/6.45 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	182/4T
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Number of Speeds:	1
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.25
Shaft Size:	1-1/8 in Dia x 2-3/4 in L
Speed:	1755 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	14.8 ft-lb
Voltage Rating:	208/230/460 VAC
