Actual Product May Vary From Image

00518ET3ESS184TC WEG

Name: 00518ET3ESS184TC WEG
Brand: WEG
SKU: 00518ET3ESS184TC WEG
Price: 2,230.00 USD
Availability: OutOfStock

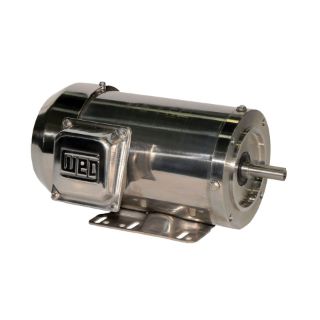

WEG Shark™ 00518ET3ESS184TC AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 184TC Frame, 1800 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 00518ET3ESS184TC

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2,230.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 101738102
Motion Industries - 04641970

Description

WEG Shark™ AC Motor, General Purpose AC Motors Application, Washdown Duty Motors Special Features, 5 hp, 230/460 VAC, 6.54 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Stainless Steel, 17.9 in L Dimensions

Application

Food Processing, Pharmaceutical and Other Applications

Standards

NEMA PremiumÂ®

Features

Washdown Duty Motors

Specifications

Amperage Rating:	6.54 A
Application Type:	General Purpose AC Motors
Dimensions:	17.9 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Stainless Steel
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1800 rpm
Voltage Rating:	230/460 VAC
