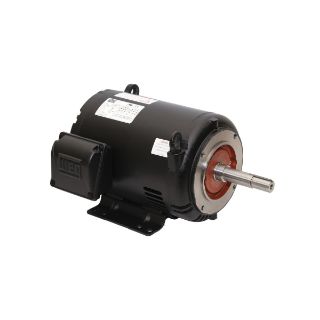

Actual Product May Vary From Image

00518OT3H184JP-S WEG

Name: 00518OT3H184JP-S WEG
Brand: WEG
SKU: 00518OT3H184JP-S WEG
Availability: OutOfStock

WEG 00518OT3H184JP-S Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 5 hp, 575 VAC, 60 Hz, 3 ph Phase, 182/4JP Frame, 1800 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00518OT3H184JP-S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 112705841
Motion Industries - 06143281

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 5 hp, 575 VAC, 5.1 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Open Drip-Proof Enclosure, 182/4JP Frame, 1.15 Service Factor, 14.7 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 20.906 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	5.1 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	20.906 in L
Enclosure Type:	Open Drip-Proof
Frame:	182/4JP
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	14.7 ft-lb
Variable Torque Speed Range:	1000:1
Voltage Rating:	575 VAC
