00518ST3QIE184TC-W22 WEG

WEG's IEEE 841 motors are specially suited for pulp and paper mills, steel mills, petrochemical plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor.

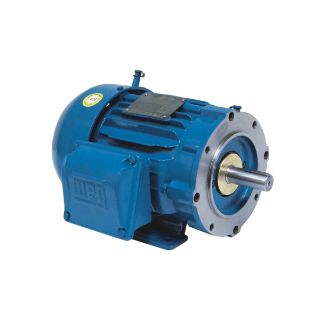

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 5 hp, 460 VAC, 6.45 A, 60 Hz Frequency, 3 ph ph, 1755 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182/4TC Frame, 1-1/8 in Dia x 2-3/4 in L Shaft, CW/CCW Rotation, 1.25 Service Factor, Ball Bearing, 14.8 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 15.86 in L Dimensions
