Actual Product May Vary From Image

00518XT3E184TC WEG

Name: 00518XT3E184TC WEG
Brand: WEG
SKU: 00518XT3E184TC WEG
Price: 1,385.00 USD
Availability: OutOfStock

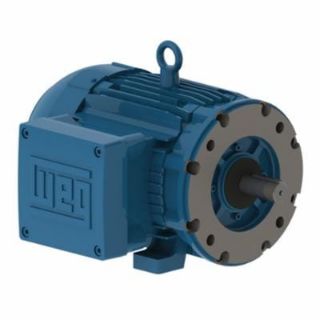

WEG 00518XT3E184TC Hazardous Location AC Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 184TC Frame, 1800 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 00518XT3E184TC

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,385.00

Qty:

Product Details

Brand Name

WEG

Type

Hazardous Location

Alternate Supplier #

Applied Industrial Technologies - 101379709
Motion Industries - 04867162

Description

WEG AC Motor, Hazardous Location, Elevator Motors, Fan & Blower Motors Application, 4-Pole, Direct On Line Starting Method, Explosion Proof AC Motors Special Features, 5 hp, 208/230/460 VAC, 14.5 to 13.1/6.57 A, 60 Hz Frequency, 3 ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 184TC Frame, 1-1/8 in Dia x 4-1/2 in H Shaft, CW/CCW Rotation, 1.149 Service Factor, Ball Bearing, 14.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron

Application

Petroleum and Gasoline, Flour/Feed Mills, Grain Elevators, Fans, Pumps, Blowers, Material Handling Equipment and Other Applications Requiring Motor

Standards

CE | CSA Certified | UL Listed

Features

4-Pole, Direct On Line Starting Method, Explosion Proof AC Motors

Specifications

Amperage Rating:	14.5 to 13.1/6.57 A
Application Type:	Elevator Motors, Fan & Blower Motors
Bearing Type:	Ball
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3
Rotation:	CW/CCW
Service Factor:	1.149
Shaft Size:	1-1/8 in Dia x 4-1/2 in H
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	14.8 ft-lb
Voltage Rating:	208/230/460 VAC
