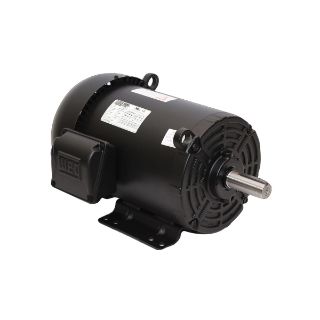

00718ET3E213T-SG WEG

7.5HP,1800RPM,213/5T Frame,ThreePhase-TEFCRolledSteelwithAEGIS-footMount
Manufacturer: WEG
Manufacturer part number: 00718ET3E213T-SG
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$828.66 / EA

Product Details

Type

TEFC – Three-Phase – Foot Mount

Description

Internal Aegis® installed inside. These motors feature a ventilation system for improved thermal performance, robust feet design suitable for tougher applications, new and more robust eyebolts design (frames 182/4T and up) plus a second eyebolt on non-drive end allowing vertical lifting capability (frames 213/5T and 254/6T), oversized diagonally split aluminum terminal box that exceeds IP55 requirements, regreasable ball bearings on 254/6T frame as standard (optional for 182/4T and 213/5T), IP55 Ingress Protection as standard, being appropriate for Severe environments - (TEFC only),and are suitable for VFD operation as per NEMA MG1 part 31.4.4.2 along with motor frame painting system 500 hours salt spray resistant.

Specifications

“C” Dimension (in):18.898
Enclosure:TEFC
FL Amps @ High:9.1
FL. Eff (%):91.7
Flange:NO
Frame:213/5T
Frame Material:ROLLED STEEL
HP:7.5
kW:5.5
Mounting:Foot Mount
RPM:1800
Section:AH, HVAC w/ Aegis, TEFC, Foot Mount and Foot Mount w/ C-Face
Service Factor:1.15
Voltage (V):230/460
