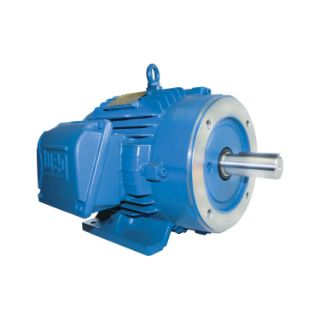

Picture of 00718NT3FVD213TC-W22 WEG
Actual Product May Vary From Image

00718NT3FVD213TC-W22 WEG

WEG 00718NT3FVD213TC-W22 Continuous-Duty AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 7.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 213-5TC Frame, 1770 rpm Speed, C-Face Footed Mount
Manufacturer: WEG
Manufacturer part number: 00718NT3FVD213TC-W22
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,803.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 111006179
Motion Industries - 04864534

Description

WEG AC Motor, Continuous-Duty, Vector (Inverter) Duty Motors Special Features, 7.5 hp, 230/460 VAC, 18.1/9.07 A, 60 Hz Frequency, 3 ph ph, 1770 rpm Speed, Totally Enclosed Nonvented (TENV) Enclosure, 213-5TC Frame, CW/CCW Rotation, 1 Service Factor, Ball Bearing, 22.0 ft-lb Torque, C-Face Footed Mounting, -20 to 40 deg C, Insulation Class: Class H, Cast Iron, 1000:1 Constant Torque Speed, 20.041 in L Dimensions

Standards

NEMA MG-1

Features

Vector (Inverter) Duty Motors

Specifications

Amperage Rating:18.1/9.07 A
Bearing Type:Ball
Constant Torque Speed Range:1000:1
Dimensions:20.041 in L
Enclosure Type:Totally Enclosed Nonvented (TENV)
Frame:213-5TC
Frequency Rating:60 Hz
Horsepower:7.5 hp
Insulation Class:Class H
Material:Cast Iron
Mounting Type:C-Face Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1
Speed:1770 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:22.0 ft-lb
Voltage Rating:230/460 VAC
