008042 DOD

Name: 008042 DOD
Brand: Dodge
SKU: 008042 DOD
Price: 133.68 USD
Availability: OutOfStock

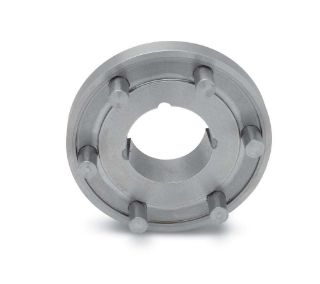

5-1/4F POLY-DISC FLANGE

Manufacturer: Dodge

Manufacturer part number: 008042

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$133.68

Qty:

Product Details

Angular Misalignment:	2.0000
Angular Misalignment (Unit):	DEGREE
ATEX Certificate:	No
Bore Diameter (Maximum):	1.6875
Bore Diameter (Maximum) (Unit):	INCH
Bore Diameter (Minimum):	0.5000
Bore Diameter (Minimum) (Unit):	INCH
Bore Length:	1.5000
Bore Length (Unit):	INCH
Bushing Size:	1615
Bushing Type:	Taper-Lock
Coupling Component:	Flange
Coupling Size:	5-1/4
Coupling Style:	Pin
Coupling Type:	Elastomeric
Flange Material:	Cast Iron
Horsepower Per 100 Rat:	2.2900
Horsepower Per 100 Rat (Unit):	HORSEPOWER
Lubrication:	None
Maximum Speed:	3600
Maximum Speed (Unit):	RPM
Maximum Temperature Rating:	170.0000
Maximum Temperature Rating (Unit):	FAHRENHEIT
Minimum Temperature Rating:	-90.0000
Minimum Temperature Rating (Unit):	FAHRENHEIT
Parallel Misalignment:	0.0313
Parallel Misalignment (Unit):	INCH
Rated Torque:	1440.0000
Rated Torque (Unit):	INCH_POUND
Shaft Attachment:	Bushed
Shaft Spacing:	Close Coupled
