Actual Product May Vary From Image

01012OT3E256JP WEG

Name: 01012OT3E256JP WEG
Brand: WEG
SKU: 01012OT3E256JP WEG
Availability: OutOfStock

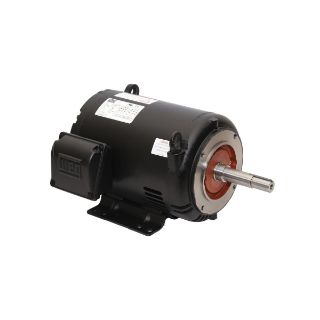

WEG 01012OT3E256JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 10 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 256JP Frame, 1200 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 01012OT3E256JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101369912
Motion Industries - 04865102

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 10 hp, 230/460 VAC, 12.8 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 256JP Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 26.782 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	12.8 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	26.782 in L
Enclosure Type:	Open Drip-Proof
Frame:	256JP
Frequency Rating:	60 Hz
Horsepower:	10 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1200 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
