01403023N MG

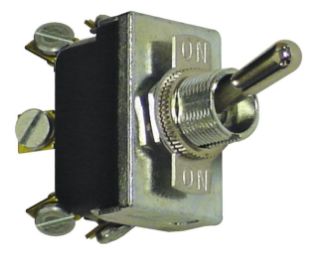

McGill® 01403023N Multi-Pole Toggle Switch, 125/250/600 VAC, 17/12/6 A, 1, 1-1/2, 2 hp Power Rating, 3PST Contact
Manufacturer: Appleton
Manufacturer part number: 01403023N
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$59.36

Product Details

Brand Name

McGill®

Type

Multi-Pole

Description

0140 series multi-pole toggle switches full-size, single pole toggle switches. 0140 series are ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life. Ideal for use in marine, food service, generator, industrial control and office automation markets. Suitable for use in low voltage VDC applications.
McGill® Toggle Switch, Multi-Pole, Series: 140, 125/250/600 VAC, 17/12/6 A, 1-1/2, 2 hp Power, 3PST Contact Configuration, 3 Pole, Toggle Actuator, Screw Terminal, Phenolic, 1.31 in L x 1.09 in W x 2.38 in H Dimensions

Application

Marine, Food Service, Generator, Industrial Control and Office Automation Markets

Standards

RoHS Compliant | UL File No. E335442 | UL Standard 1054 | Guide WORY2 | CSA File No. 249055 | CSA C22.2 No.55 | UL Listed

Features

  • Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life
  • Appropriate for use in low voltage VDC applications
  • Indicating plate is furnished for maintained ON-OFF circuits
  • Mounting hardware consists of nickel plated hex nut and knurled nut

Specifications

Actuator:Toggle
Amperage Rating:17/12/6 A
Contact Configuration:3PST
Country of Origin:MX
Dimensions:1.31 in L x 1.09 in W x 2.38 in H
Material:Phenolic
Number of Poles:3
Power Rating:1, 1-1/2, 2 hp
Series:140
Terminal Type:Screw
Voltage Rating:125/250/600 VAC
