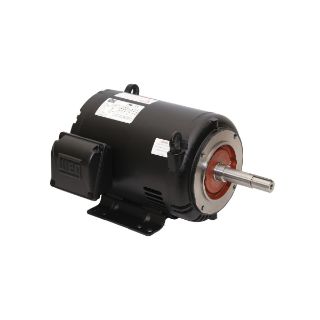

Picture of 01518OT3E254JP-S WEG
Actual Product May Vary From Image

01518OT3E254JP-S WEG

WEG 01518OT3E254JP-S Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 15 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254/6JP Frame, 1775 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 01518OT3E254JP-S
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,995.00

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110951454
Motion Industries - 06143483

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.
WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 15 hp, 208/230/460 VAC, 41.1 to 37.2/18.6 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, Open Drip-Proof Enclosure, 254/6JP Frame, 1-1/4 in Dia x 5-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 43.8 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 1000:1 Variable Torque Speed, 24.843 in L Dimensions

Standards

NEMA MG-1

Features

  • Stainless steel nameplate laser etched with high contrast background
  • Regreasable bearings

Specifications

Amperage Rating:41.1 to 37.2/18.6 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Dimensions:24.843 in L
Enclosure Type:Open Drip-Proof
Frame:254/6JP
Frequency Rating:60 Hz
Horsepower:15 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Shaft Size:1-1/4 in Dia x 5-1/4 in L
Speed:1775 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:43.8 ft-lb
Variable Torque Speed Range:1000:1
Voltage Rating:208/230/460 VAC
