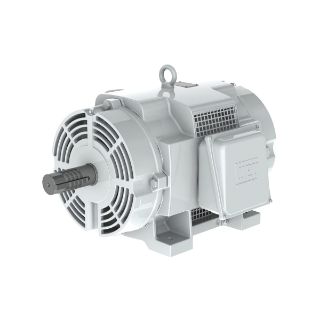

Actual Product May Vary From Image

02012OS3EOW286T WEG

Name: 02012OS3EOW286T WEG
Brand: WEG
SKU: 02012OS3EOW286T WEG
Availability: OutOfStock

WEG 02012OS3EOW286T Continuous-Duty Definite Purpose AC Motor, Open Drip-Proof Enclosure, 20 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 286T Frame, 1110 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: 02012OS3EOW286T

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101374446
Motion Industries - 04205635

Description

WEG Definite Purpose AC Motor, Continuous-Duty, General Purpose AC Motors, Oil Well Pumping Motors Application, 20 hp, 208/230/460 VAC, 54.2 to 49/24.5 A, 60 Hz Frequency, 3 ph ph, 1110 rpm Speed, Open Drip-Proof Enclosure, 286T Frame, 1-7/8 in Dia x 4-5/8 in L Shaft, CW/CCW Rotation, 1 Service Factor, Ball Bearing, 93.3 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Cast Iron, 24.882 in L Dimensions

Application

General Purpose and Oil Well Pump Applications

Standards

NEMA MG-1

Features

These special motors have the high slip and high torque that oil well beam pumping units demand
Regreasable bearings
NEMA design D
Rodent screen
High starting and breakdown torque

Specifications

Amperage Rating:	54.2 to 49/24.5 A
Application Type:	General Purpose AC Motors, Oil Well Pumping Motors
Bearing Type:	Ball
Dimensions:	24.882 in L
Enclosure Type:	Open Drip-Proof
Frame:	286T
Frequency Rating:	60 Hz
Horsepower:	20 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Footed
Phase:	3 ph
Rotation:	CW/CCW
Service Factor:	1
Shaft Size:	1-7/8 in Dia x 4-5/8 in L
Speed:	1110 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	93.3 ft-lb
Voltage Rating:	208/230/460 VAC
