Actual Product May Vary From Image

02012OT3E286JP WEG

Name: 02012OT3E286JP WEG
Brand: WEG
SKU: 02012OT3E286JP WEG
Availability: OutOfStock

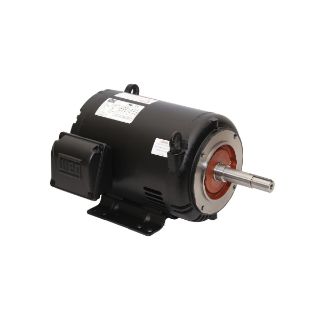

WEG 02012OT3E286JP Closed Couple Pump Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 20 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 286JP Frame, 1200 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: 02012OT3E286JP

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 101378116
Motion Industries - 04865107

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump Continuous-Duty, Jet Pump (JM/JP) Motors Application, 20 hp, 230/460 VAC, 24 A, 60 Hz Frequency, 3 ph ph, 1200 rpm Speed, Open Drip-Proof Enclosure, 286JP Frame, 1.15 Service Factor, C-Face Footed Mounting, Insulation Class: Class F, Cast Iron, 1000:1 Variable Torque Speed, 28.634 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	24 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	28.634 in L
Enclosure Type:	Open Drip-Proof
Frame:	286JP
Frequency Rating:	60 Hz
Horsepower:	20 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1.15
Speed:	1200 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
