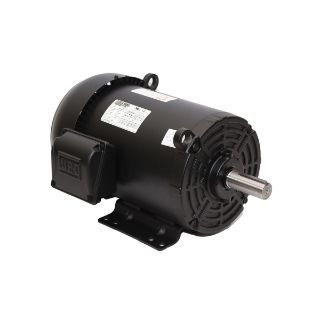

Picture of 02018ET3E256T-S WEG
Actual Product May Vary From Image

02018ET3E256T-S WEG

WEG 02018ET3E256T-S Continuous-Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 20 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 254/6T Frame, 1765 rpm Speed, Footed Mount
Manufacturer: WEG
Manufacturer part number: 02018ET3E256T-S
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,918.00

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110865601

Description

WEG AC Motor, Continuous-Duty, General Purpose AC Motors Application, 20 hp, 208/230/460 VAC, 54.6 to 49.4/24.7 A, 60 Hz Frequency, 3 ph ph, 1765 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 254/6T Frame, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 58.7 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 23.346 in L Dimensions

Application

General Purpose Applications

Features

  • Aluminum endshields
  • Cast iron flanges for improved strength
  • Internal bolts, giving a clean surface to the motor
  • Double shielded ball bearings
  • Robust design
  • IP55 rating

Specifications

Amperage Rating:54.6 to 49.4/24.7 A
Application Type:General Purpose AC Motors
Bearing Type:Ball
Dimensions:23.346 in L
Enclosure Type:Totally Enclosed Fan Cooled
Frame:254/6T
Frequency Rating:60 Hz
Horsepower:20 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Footed
Phase:3 ph
Rotation:CW/CCW
Service Factor:1.15
Speed:1765 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:58.7 ft-lb
Voltage Rating:208/230/460 VAC
