Actual Product May Vary From Image

02018OT3E256JMV WEG

Name: 02018OT3E256JMV WEG
Brand: WEG
SKU: 02018OT3E256JMV WEG
Availability: OutOfStock

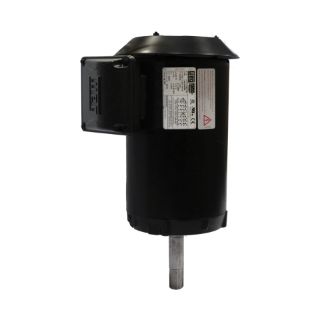

WEG 02018OT3E256JMV Closed Couple Pump AC Motor, Open Drip-Proof Enclosure, 20 hp, 230/460 VAC, 3 ph Phase, 256JM Frame, 1800 rpm Speed

Manufacturer: WEG

Manufacturer part number: 02018OT3E256JMV

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

WEG

Type

Closed Couple Pump

Description

WEG open drip proof motors are designed to meet demanding applications in environments where dirt and humidity are minimal. These motors are specifically designed to provide maximum ventilation and heat dissipation.

WEG AC Motor, Closed Couple Pump, Jet Pump (JM/JP) Motors Application, 20 hp, 230/460 VAC, 24.7 A, 3 ph ph, 1800 rpm Speed, Open Drip-Proof Enclosure, 256JM Frame, 1.15 Service Factor, Insulation Class: Class F, 1000:1 Variable Torque Speed, 25.831 in L Dimensions

Features

Stainless steel nameplate laser etched with high contrast background
Regreasable bearings

Specifications

Amperage Rating:	24.7 A
Application Type:	Jet Pump (JM/JP) Motors
Dimensions:	25.831 in L
Enclosure Type:	Open Drip-Proof
Frame:	256JM
Horsepower:	20 hp
Insulation Class:	Class F
Phase:	3 ph
Service Factor:	1.15
Speed:	1800 rpm
Variable Torque Speed Range:	1000:1
Voltage Rating:	230/460 VAC
