0217.250VXP LIT

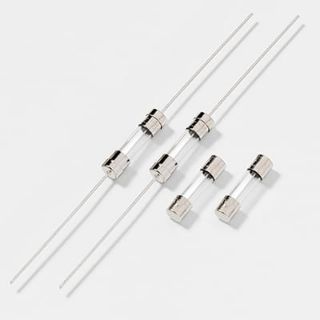

Littelfuse® POWR-GARD® 217.250P Fast Acting Cartridge Fuse, 0.25 A, 250 VAC, 35 A Interrupt, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 217.250P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$7.24

Product Details

Brand Name

Littelfuse®

Type

Fast Acting

Description

For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
Littelfuse® POWR-GARD® Cartridge Fuse, Fast Acting, Series: 217, Non-Indicating, 0.25 A, 250 VAC, 35 A Interrupt, 60 min, 30 min, 0.05 to 2 s, 0.01 to 0.3 s, 0.02 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 5.6 mm Dia x 21.5 mm L Body

Application

For supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits and AC applications

Standards

IEC 60127-2 | CSA Certified | CE Certified | UL Recognized | UL 248-12 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Designed to international (IEC) standards for use globally
  • Meets the IEC 60127-2, sheet 2 specification for fast acting fuses
  • Lead-free
  • Nickel plated brass cap, tin plated copper leads
  • -55 to 125 deg C operating temperature
  • 60 min minimum at 150%, 30 min maximum at 210%, 0.05 to 2 sec at 275%, 0.01 to 0.3 sec at 400%, 0.02 sec maximum at 1000% opening time
  • 35 A at 250 VAC interrupting rating

Specifications

Amperage Rating:0.25 A
Body Size:5.6 mm Dia x 21.5 mm L
Body Type:Cartridge
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:35 A
Material:Glass
Mounting Type:Holder
Response Time:60 min, 30 min, 0.05 to 2 s, 0.01 to 0.3 s, 0.02 s
Series:217
Terminal Type:Ferrule
Voltage Rating:250 VAC
