0220-74858 HUB

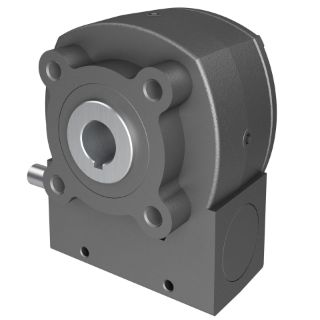

Cast Iron Single-Reduction Worm Reducer
Manufacturer part number: W300 10/1 A WR 1.125
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$973.64 / EA

Product Details

Alternate Supplier #

0220-74858

Features

Modular Design Universal Mounting Dimensions Cast iron housing Tapered roller bearings Heavy-duty industrial seals Shaft mounted for direct mounting on drive shafts

Specifications

Center Distance (IN):2.626
Center Distance Range:1" thru 3.25"
Gear Type:Worm
Housing Material:Cast Iron
Input Diameter (IN):0.625
Input HP:2.45
Input Style:SHAFT
Model Code:W300
Output Diameter (IN):1.125
Output RPM:175
Output Shaft:Finished Bore
Output Torque:800
Product Line:Worm Gear Drive
Product Type:Right Angle
Ratio:10:1
Ratio Range:5 thru 60
Series Code:W300
Service Factor:1
Style:A
