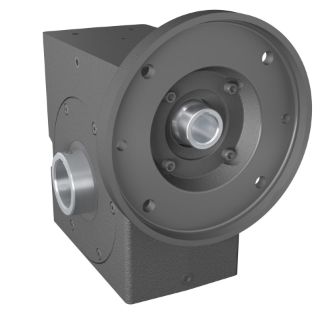

Hub City® PowerCubeX® 0220-78792 380 Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 4.22 hp Input, 40:1 Gear, 43.8 rpm Maximum Output, 4406 in-lb Output Torque Rating
Manufacturer part number: 0220-78792
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 380, 40:1 Gear Ratio, 4.22 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 2.188 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4406 in-lb Output, 3-3/4 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/8 in Output Keyway, 72.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.56 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting

Specifications

Centre Distance:3-3/4 in
Country of Origin:US
Dimensions:7.56 in W
Efficiency:72.5 %
Gear Ratio:40:1
Horsepower:4.22 hp Input
Input Maximum Speed:1750 rpm
Input Size:1-1/8 in Dia
Input Type:C-Face Quill
Keyway Size:1/4 x 1/8 in Input, 1/2 x 1/8 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:43.8 rpm
Output Size:2.188 in Dia
Output Type:Hollow Bore
Series:380
Torque Rating:4406 in-lb Output
