0220-78896 HUB

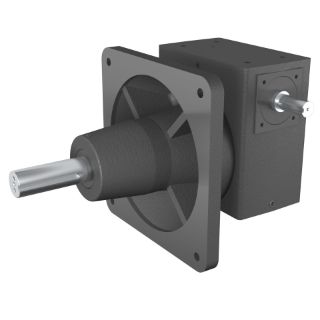

Cast Iron Single-Reduction Worm Reducer
Manufacturer part number: 387 40/1 L WR STD FLANGE
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$2,758.66 / EA

Product Details

Alternate Supplier #

0220-78896

Features

Modular Design Universal Mounting Dimensions Increased thermal capacity and Increased efficiency Cast iron housing Alloy shafting

Specifications

Center Distance (IN):3.751
Center Distance Range:Above 3.25"
Gear Type:Worm
Housing Material:Cast Iron
Input Diameter (IN):1
Input HP:4.22
Input Style:SHAFT
Model Code:387
Output Diameter (IN):1.625
Output RPM:43.8
Output Shaft:Solid Shaft
Output Torque:4406
Product Line:PowerCube Worm Gear Drive
Product Type:Right Angle
Ratio:40:1
Ratio Range:5 thru 60
Series Code:380
Service Factor:1
Style:L
