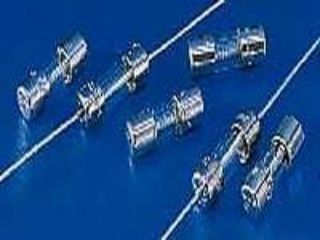

Picture of 0229004.VXP LIT
Actual Product May Vary From Image

0229004.VXP LIT

Littelfuse® POWR-GARD® Slo-Blo® 229004P Time Lag Cartridge Fuse, 4 A, 125 VAC, 400 A Interrupt, Class: RK1, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: 229004P
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$4.36

Product Details

Brand Name

Littelfuse®

Type

Time Lag

Description

Littelfuse® 229/230 series Slo-Blo® fuses are available in 2AG size cartridge or axial lead form, offer tripped fuse indicating option, and offer features designed to meet rigorous Telecom industry requirements. 229/230 series product ordered with the tripped fuse indicating option show discoloration of the glass body immediately after trip. They offer the same performance characteristics as standard product and help to reduce time locating the tripped fuse and troubleshooting circuit issues. The 229/230 series 0.25 to 1.25 A range combines conventional over current protection with ability to withstand high current, short duration pulses which complies to short circuit requirements of UL 60950 for telephone equipment. Insulating sleeve option is also available.
Littelfuse® POWR-GARD® Slo-Blo® Cartridge Fuse, Time Lag, Series: 229, Indicating, 4 A, 125 VAC, 400 A Interrupt, Class: RK1, 4 hr, 1 hr, 3 to 20 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 5 mm Dia x 15 mm L Body

Application

For non-inductive loads applications

Standards

UL 248-12 | CSA Certified | UL File No. E10480 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Offer the same performance characteristics as standard product, and help to reduce time locating the tripped fuse and troubleshooting circuit issues
  • Combines conventional over current protection with ability to withstand high current, short duration pulses
  • -60 to 125 deg C operating temperature
  • 0.0258 ohms resistance
  • 148 I2T (A2 sec) nominal melting
  • 400 A at 125 VAC and 400 A at 125 VDC interrupting rating
  • Tripped fuse indicating
  • 4 hrs minimum at 100%, 1 hr maximum at 135%, 3 to 20 sec maximum at 200% response time
  • Glass body, nickel plated brass end cap
  • Size 2AG

Specifications

Amperage Rating:4 A
Body Size:5 mm Dia x 15 mm L
Body Type:Cartridge
Class:RK1
Country of Origin:MX
Indicating/Non-Indicating:Indicating
Interrupt Rating:400 A
Material:Glass
Mounting Type:Holder
Response Time:4 hr, 1 hr, 3 to 20 s
Series:229
Terminal Type:Ferrule
Voltage Rating:125 VAC
