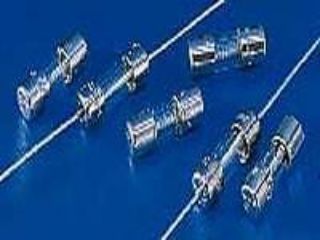

Picture of 0229005.MXSP LIT
Actual Product May Vary From Image

0229005.MXSP LIT

Littelfuse® Slo-Blo® 0229005.MXSP 229 Subminiature Cartridge Fuse, 5 A, 250 VAC/125 VDC, 10000 A at 125 VDC Interrupt
Manufacturer: Littelfuse
Manufacturer part number: 0229005.MXSP
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Littelfuse®

Type

Subminiature

Description

The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
Littelfuse® Slo-Blo® Cartridge Fuse, Lead Free Subminiature, Series: 229, Indicating/Non-Indicating: Indicating, 5 A, 250 VAC/125 VDC, 10000 A at 125 VDC Interrupt, Glass Body, Nickel-Plated Brass Cap, 0.16 to 0.19 in Dia x 0.56 to 0.59 in L Body Size

Application

For Electronic Equipment and Amp Appliances

Standards

CE Certified | CSA Certified | PSE Approved | RU® Approved | UL 248-14 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.

Features

  • 229 series 2AG fuses have time-delay of 313 series 3AG fuses in less than one-third of the space
  • They provide superior protection for inductive loads such as motors, transformers, and solenoids
  • Use whenever time-delay fuses are indicated
  • An indicating version is also available, 2AG indicating fuses instantly identify themselves upon opening by showing a discoloration of their glass bodies
  • Guesswork and time-consuming circuit testing is eliminated
  • This unique design offers the same quality performance characteristics as the standard 2AG fuse design

Specifications

Amperage Rating:5 A
Body Size:0.16 to 0.19 in Dia x 0.56 to 0.59 in L
Country of Origin:MX
Indicating/Non-Indicating:Indicating
Interrupt Rating:10000 A at 125 VDC
Material:Glass Body, Nickel-Plated Brass Cap
Series:229
Voltage Rating:250 VAC/125 VDC
