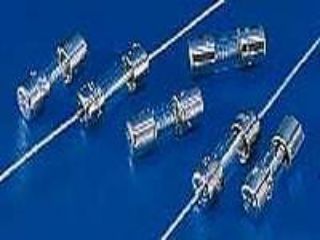

Actual Product May Vary From Image

0229.500VXP LIT

Name: 0229.500VXP LIT
Brand: Littelfuse
SKU: 0229.500VXP LIT
Price: 4.36 USD
Availability: OutOfStock

Littelfuse® POWR-GARD® Slo-Blo® 229.500P Time Lag Cartridge Fuse, 0.5 A, 250 VAC, 10 kA Interrupt, Class: CC, Cartridge Body

Manufacturer: Littelfuse

Manufacturer part number: 229.500P

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$4.36

Qty:

Product Details

Brand Name

Littelfuse®

Type

Time Lag

Description

Littelfuse® 229/230 series Slo-Blo® fuses are available in 2AG size cartridge or axial lead form, offer tripped fuse indicating option, and offer features designed to meet rigorous Telecom industry requirements. 229/230 series product ordered with the tripped fuse indicating option show discoloration of the glass body immediately after trip. They offer the same performance characteristics as standard product and help to reduce time locating the tripped fuse and troubleshooting circuit issues. The 229/230 series 0.25 to 1.25 A range combines conventional over current protection with ability to withstand high current, short duration pulses which complies to short circuit requirements of UL 60950 for telephone equipment. Insulating sleeve option is also available.

Littelfuse® POWR-GARD® Slo-Blo® Cartridge Fuse, Time Lag, Series: 229, Indicating, 0.5 A, 250 VAC, 10 kA Interrupt, Class: CC, 4 hr, 1 hr, 3 to 20 s Response, Ferrule Terminal, Holder Mounting, Cartridge Body, Glass, 5 mm Dia x 15 mm L Body

Application

General Purpose Applications

Standards

UL 248-4 | CSA Certified | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

Offer the same performance characteristics as standard product, and help to reduce time locating the tripped fuse and troubleshooting circuit issues
Combines conventional over current protection with ability to withstand high current, short duration pulses
-60 to 125 deg C operating temperature
0.6935 ohms resistance
1.64 I2T (A2 sec) nominal melting
10 kA at 125 VAC interrupting rating
Tripped fuse indicating
4 hrs minimum at 100%, 1 hr maximum at 135%, 3 to 20 sec maximum at 200% response time
Glass body, nickel plated brass end cap
Size 2AG

Specifications

Amperage Rating:	0.5 A
Body Size:	5 mm Dia x 15 mm L
Body Type:	Cartridge
Class:	CC
Country of Origin:	MX
Indicating/Non-Indicating:	Indicating
Interrupt Rating:	10 kA
Material:	Glass
Mounting Type:	Holder
Response Time:	4 hr, 1 hr, 3 to 20 s
Series:	229
Terminal Type:	Ferrule
Voltage Rating:	250 VAC
