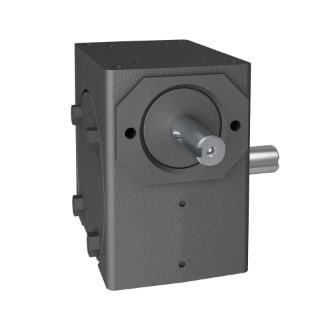

Actual Product May Vary From Image

0230-01376 HUB

Name: 0230-01376 HUB
SKU: 0230-01376 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-01376 180PCX Right Angle Single Reduction Style C Worm Gear Reducer, Shaft Input, Shaft Output, 2.05 hp Input, 7.5:1 Gear, 233 rpm Maximum Output, 468 in-lb Output Torque Rating

Manufacturer part number: 0230-01376

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 180PCX, 7.5:1 Gear Ratio, 2.05 hp Input, Shaft Input, Shaft Output, 0.625 in Dia x 1.76 in L Input, 0.75 in Dia x 1.78 in L Output, 233 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 468 in-lb Output, 1-3/4 in Centre Distance, 3/16 x 3/32 in Input/Output Keyway, 84.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	1-3/4 in
Dimensions:	5 in H
Efficiency:	84.7 %
Gear Ratio:	7.5:1
Horsepower:	2.05 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.625 in Dia x 1.76 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input/Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	233 rpm
Output Size:	0.75 in Dia x 1.78 in L
Output Type:	Shaft
Series:	180PCX
Torque Rating:	468 in-lb Output
