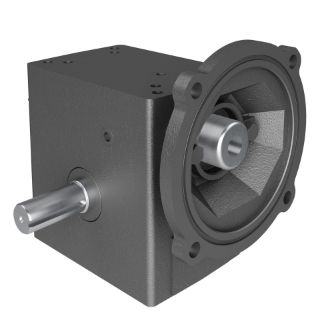

Actual Product May Vary From Image

0230-02601 HUB

Name: 0230-02601 HUB
SKU: 0230-02601 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-02601 210PCX Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 3.89 hp Input, 5:1 Gear, 350 rpm Maximum Output, 605 in-lb Output Torque Rating

Manufacturer part number: 0230-02601

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 210PCX, 5:1 Gear Ratio, 3.89 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 0.875 in Dia x 2.19 in L Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 605 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Output Keyway, 86.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Efficiency:	86.3 %
Gear Ratio:	5:1
Horsepower:	3.89 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	350 rpm
Output Size:	0.875 in Dia x 2.19 in L
Output Type:	Shaft
Series:	210PCX
Torque Rating:	605 in-lb Output
