0230-07426 HUB

Name: 0230-07426 HUB
Brand: Hub City
SKU: 0230-07426 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-07426

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

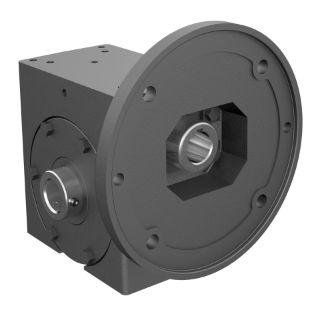

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 260PCX, 40:1 Gear Ratio, 1.58 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1-1/4 in Dia Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1642 in-lb Output, 2.63 in Centre Distance, 1/4 x 1/8 in Output Keyway, 72.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.93 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Dimensions:	5.93 in W
Efficiency:	72.4 %
Gear Ratio:	40:1
Horsepower:	1.58 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	1-1/4 in Dia
Output Type:	Hollow Bore
Series:	260PCX
Torque Rating:	1642 in-lb Output

Resources
