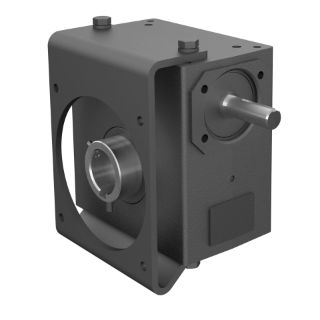

Picture of 0230-14689 HUB
Actual Product May Vary From Image

0230-14689 HUB

Hub City® PowerCubeX® 0230-14689 320PCX Right Angle Single Reduction Style L Worm Gear Reducer, Shaft Input, Hollow Bore Output, 4.59 hp Input, 20:1 Gear, 87.5 rpm Maximum Output, 2686 in-lb Output Torque Rating
Manufacturer part number: 0230-14689
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 320PCX, 20:1 Gear Ratio, 4.59 hp Input, Shaft Input, Hollow Bore Output, 0.875 in Dia x 2.38 in L Input, 1.438 in Dia Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2686 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input Keyway, 81.2 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.78 in W x 10.14 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting
  • FKM seals

Specifications

Centre Distance:3-1/4 in
Dimensions:7.78 in W x 10.14 in H
Efficiency:81.2 %
Gear Ratio:20:1
Horsepower:4.59 hp Input
Input Maximum Speed:1750 rpm
Input Size:0.875 in Dia x 2.38 in L
Input Type:Shaft
Keyway Size:3/16 x 3/32 in Input
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:87.5 rpm
Output Size:1.438 in Dia
Output Type:Hollow Bore
Series:320PCX
Torque Rating:2686 in-lb Output
