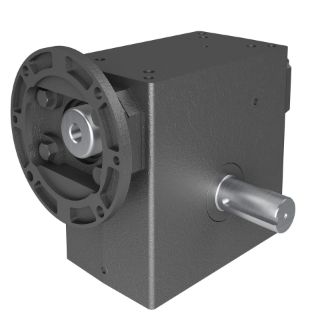

Picture of 0230-14895 HUB
Actual Product May Vary From Image

0230-14895 HUB

Hub City® PowerCubeX® 0230-14895 320PCX Right Angle Single Reduction Style C Worm Gear Reducer, C-Face Quill Input, Shaft Output, 3.56 hp Input, 30:1 Gear, 58.3 rpm Maximum Output, 2943 in-lb Output Torque Rating
Manufacturer part number: 0230-14895
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 320PCX, 30:1 Gear Ratio, 3.56 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.375 in Dia x 2.84 in L Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2943 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 5/16 x 5/32 in Output Keyway, 76.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting
  • FKM seals

Specifications

Centre Distance:3-1/4 in
Country of Origin:US
Efficiency:76.4 %
Gear Ratio:30:1
Horsepower:3.56 hp Input
Input Maximum Speed:1750 rpm
Input Size:7/8 in Dia
Input Type:C-Face Quill
Keyway Size:3/16 x 3/32 in Input, 5/16 x 5/32 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:58.3 rpm
Output Size:1.375 in Dia x 2.84 in L
Output Type:Shaft
Series:320PCX
Torque Rating:2943 in-lb Output
