0230-17024 HUB

Name: 0230-17024 HUB
Brand: Hub City
SKU: 0230-17024 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-17024

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

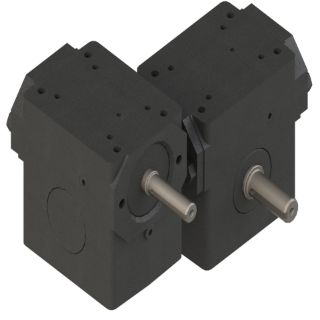

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 1300, 150:1 Gear Ratio, 0.125 hp Input, Shaft Input, Shaft Output, 1/2 in Dia Input, 5/8 in Dia Output, 11.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 369 in-lb Output Torque, 1.33 in Centre Distance, 1/8 x 1/16 in Input, 3/16 x 3/32 in Output Keyway, 54.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 6-1/2 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Single output

Specifications

Centre Distance:	1.33 in
Dimensions:	6-1/2 in W
Efficiency:	54.5 %
Gear Ratio:	150:1
Horsepower:	0.125 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1/2 in Dia
Input Type:	Shaft
Keyway Size:	1/8 x 1/16 in Input, 3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	11.7 rpm
Output Size:	5/8 in Dia
Output Type:	Shaft
Series:	1300
Torque Rating:	369 in-lb Output
