0230-18589 HUB

Name: 0230-18589 HUB
Brand: Hub City
SKU: 0230-18589 HUB
Availability: OutOfStock

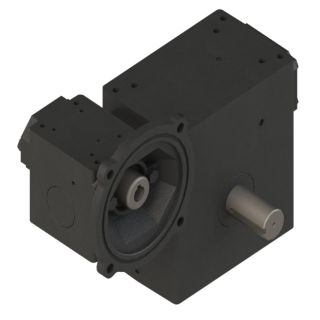

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-18589

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 1800, 500:1 Gear Ratio, 0.091 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 3/4 in Dia Output, 3.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 754 in-lb Output Torque, 1-3/4 in Centre Distance, 3/16 x 3/32 in Input Keyway, 45.9 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Single output
Available in Multiple Styles and Mounting Configurations

Specifications

Centre Distance:	1-3/4 in
Dimensions:	7 in W
Efficiency:	45.9 %
Gear Ratio:	500:1
Horsepower:	0.091 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	3.5 rpm
Output Size:	3/4 in Dia
Output Type:	Shaft
Series:	1800
Torque Rating:	754 in-lb Output
