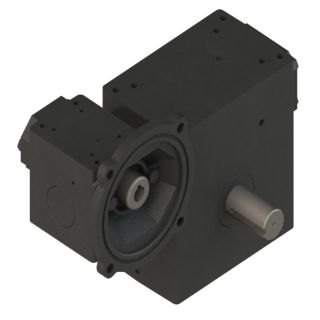

Actual Product May Vary From Image

0230-19739 HUB

Name: 0230-19739 HUB
SKU: 0230-19739 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-19739 2100 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 0.041 hp Input, 3000:1 Gear, 0.58 rpm Maximum Output, 1128 in-lb Output Torque Rating

Manufacturer part number: 0230-19739

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2100, 3000:1 Gear Ratio, 0.041 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 0.875 in Dia x 2.19 in L Output, 0.58 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1128 in-lb Output, 2.06 in Centre Distance, 3/16 x 3/32 in Output Keyway, 25.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.06 in
Dimensions:	8-1/2 in W
Efficiency:	25.4 %
Gear Ratio:	3000:1
Horsepower:	0.041 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.58 rpm
Output Size:	0.875 in Dia x 2.19 in L
Output Type:	Shaft
Series:	2100
Torque Rating:	1128 in-lb Output
