0230-24310 HUB

Name: 0230-24310 HUB
Brand: Hub City
SKU: 0230-24310 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-24310

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

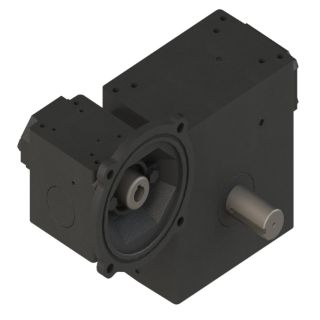

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2600, 600:1 Gear Ratio, 1/4 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1-1/4 in Dia x 2-1/4 in L Output, 2.92 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2485 in-lb Output, 2.63 in Centre Distance, 1/4 x 1/8 in Output Keyway, 46.8 % Efficiency, Conventional Oil Lubrication, Cast Iron, 9 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Available in Multiple Styles and Mounting Configurations

Specifications

Centre Distance:	2.63 in
Dimensions:	9 in W
Efficiency:	46.8 %
Gear Ratio:	600:1
Horsepower:	1/4 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	2.92 rpm
Output Size:	1-1/4 in Dia x 2-1/4 in L
Output Type:	Shaft
Series:	2600
Torque Rating:	2485 in-lb Output

Resources
