0230-24521 HUB

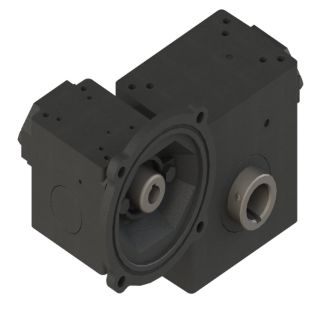

Picture of 0230-24521 HUB
Actual Product May Vary From Image

Product Details

Manufacturers:
Hub City , Hub City , Hub City
Manufacturer part number:
0230-24521
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2600, 50:1 Gear Ratio, 1.38 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.438 in Dia Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1681 in-lb Output Torque, 2.63 in Centre Distance, 67.7 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.93 in W

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and increased efficiency
  • Alloy shafting
  • FKM seals
  • Available in Multiple Styles and Mounting Configurations

Specifications

Centre Distance:2.63 in
Dimensions:5.93 in W
Efficiency:67.7 %
Gear Ratio:50:1
Horsepower:1.38 hp Input
Input Maximum Speed:1750 rpm
Input Size:5/8 in Dia
Input Type:C-Face Quill
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:35 rpm
Output Size:1.438 in Dia
Output Type:Hollow Bore
Series:2600
Torque Rating:1681 in-lb Output
