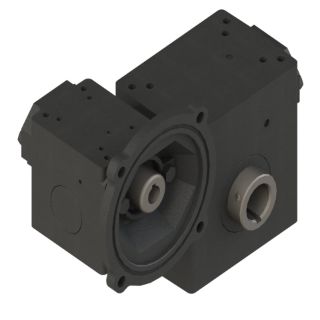

Actual Product May Vary From Image

0230-24529 HUB

Name: 0230-24529 HUB
SKU: 0230-24529 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-24529 2600 Double Reduction Right Angle Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 0.3 hp Input, 500:1 Gear, 3.5 rpm Maximum Output, 2604 in-lb Output Torque Rating

Manufacturer part number: 0230-24529

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 2600, 500:1 Gear Ratio, 0.3 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.438 in Dia Output, 3.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2604 in-lb Output Torque, 2.63 in Centre Distance, 47.6 % Efficiency, Conventional Oil Lubrication, Cast Iron, 5.93 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Dimensions:	5.93 in W
Efficiency:	47.6 %
Gear Ratio:	500:1
Horsepower:	0.3 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	3.5 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	2600
Torque Rating:	2604 in-lb Output
