0230-30137 HUB

Name: 0230-30137 HUB
Brand: Hub City
SKU: 0230-30137 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-30137

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

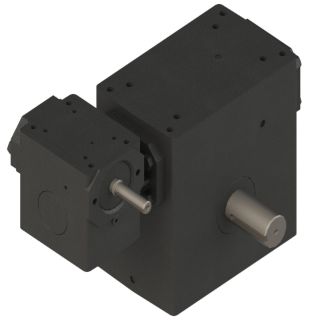

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 2000:1 Gear Ratio, 0.211 hp Input, Shaft Input, Shaft Output, 5/8 in Dia Input, 1-3/8 in Dia Output, 0.88 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5247 in-lb Output Torque, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 5/16 x 5/32 in Output Keyway, 34.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 10.88 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Single output

Specifications

Centre Distance:	3-1/4 in
Dimensions:	10.88 in W
Efficiency:	34.5 %
Gear Ratio:	2000:1
Horsepower:	0.211 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 5/16 x 5/32 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.88 rpm
Output Size:	1-3/8 in Dia
Output Type:	Shaft
Series:	3200
Torque Rating:	5247 in-lb Output
