0230-30658 HUB

Name: 0230-30658 HUB
Brand: Hub City
SKU: 0230-30658 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-30658

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

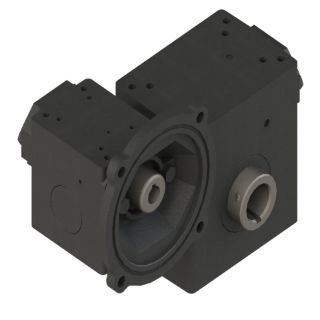

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 2400:1 Gear Ratio, 0.193 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 2.188 in Dia Output, 0.73 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5247 in-lb Output Torque, 3-1/4 in Centre Distance, 31.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.56 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Dimensions:	7.56 in W
Efficiency:	31.4 %
Gear Ratio:	2400:1
Horsepower:	0.193 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.73 rpm
Output Size:	2.188 in Dia
Output Type:	Hollow Bore
Series:	3200
Torque Rating:	5247 in-lb Output
