0230-30903 HUB

Name: 0230-30903 HUB
Brand: Hub City
SKU: 0230-30903 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-30903

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction Right Angle

Description

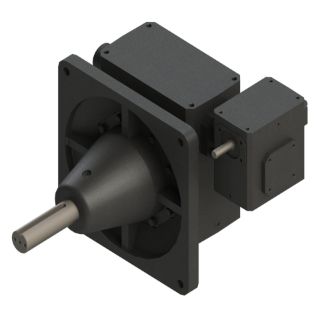

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle, Series: 3200, 100:1 Gear Ratio, 1.96 hp Input, Shaft Input, Shaft Output, 5/8 in Dia Input, 1.438 in Dia Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4472 in-lb Output Torque, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 3/16 in Output Keyway, 63.3 % Efficiency, Conventional Oil Lubrication, Cast Iron, 11 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Includes

Standard Flange

Specifications

Centre Distance:	3-1/4 in
Dimensions:	11 in W
Efficiency:	63.3 %
Gear Ratio:	100:1
Horsepower:	1.96 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	1.438 in Dia
Output Type:	Shaft
Series:	3200
Torque Rating:	4472 in-lb Output
